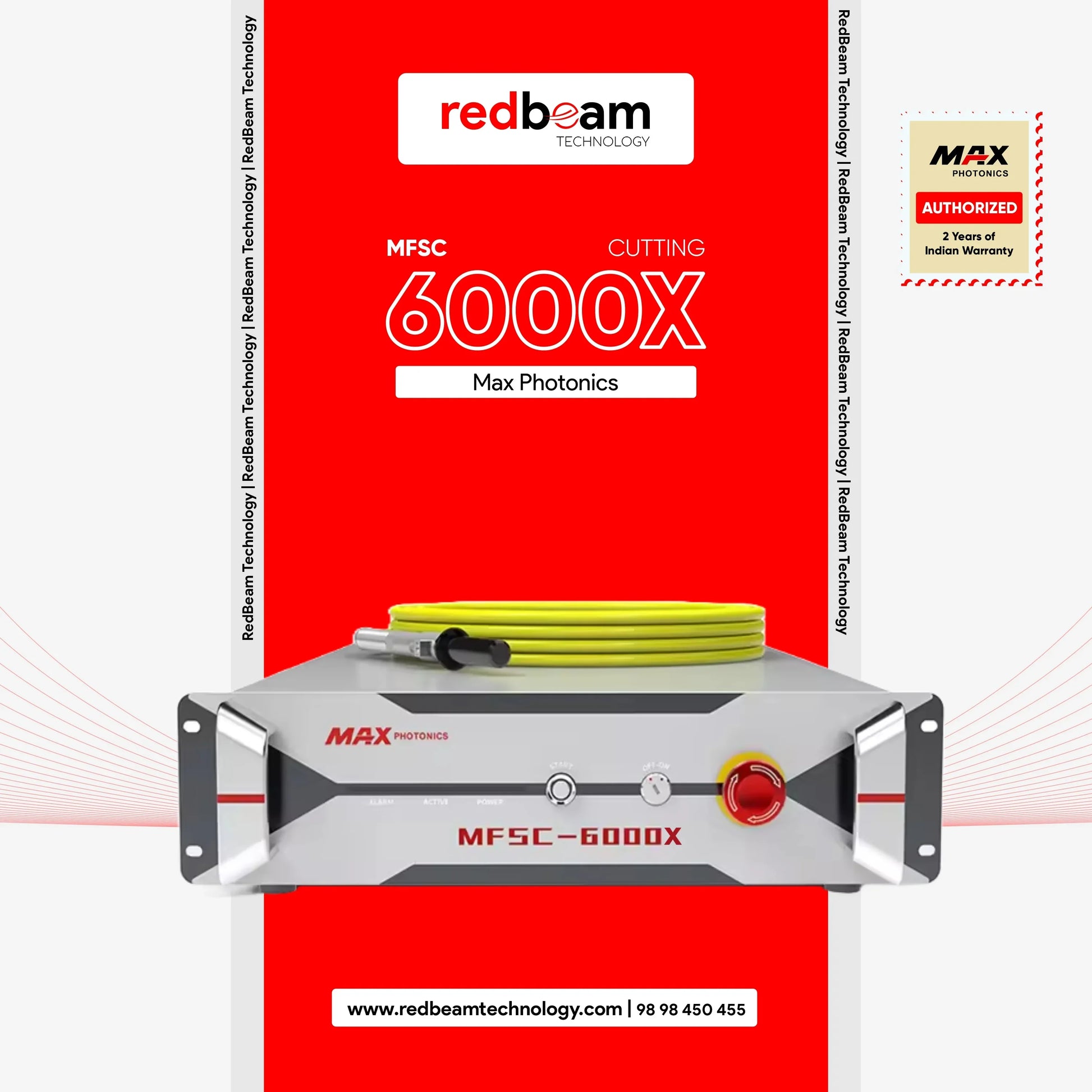

Max MFSC-6000X: Ultra-High-Power 6000W Fiber Laser Source (X-Series)

The Max MFSC-6000X is an industrial-grade, single-module continuous wave (CW) fiber laser engineered for heavy-duty manufacturing. Delivering 6000W of nominal output power, this X-Series model is the ultimate solution for high-speed processing of thick structural plates. It packs massive cutting capability into a compact $115$ mm height frame, allowing for maximum productivity with a minimal footprint.

Solving High-Output Industrial Cutting Challenges

As production requirements scale toward heavy-gauge materials, the Max 6000X addresses the most critical pain points for manufacturers:

• Problem: Bottlenecks when cutting thick carbon and stainless steel.

• Solution: With 6000W of power, this Fiber Laser drastically increases throughput, handling carbon steel up to 25mm and stainless steel up to 20mm.

• Problem: Power instability during long-duration, high-power cycles.

• Solution: This unit maintains a power instability rating of just $\pm 1\text{–}2\%$ over an hour, ensuring consistent cut quality during 24/7 production.

• Problem: Integrating high-power sources into standard machine frames.

• Solution: Despite its massive output, the single-module design weighs only $56\pm 5$ kg, making it significantly easier to integrate than older multi-module systems.

Technical Specifications: Max MFSC-6000X

Optimized Cutting Performance

The 6000X is the powerhouse of the X-Series, delivering extreme speeds on thin materials and stable performance on heavy-duty structural steel:

• Carbon Steel (CS): Capable of cutting up to 25mm.

  • High-Speed Processing: Reaches speeds of 35–45 m/min for 1mm CS.

  • Structural Heavy-Gauge: Stable, high-power cutting at 0.4–0.5 m/min for 25mm CS using O2.

• Stainless Steel (SS): Capable of high-quality cuts up to 20mm.

  • Rapid Throughput: Achieves speeds of 40–50 m/min for 1mm SS.

  • Thick-Plate Precision: Reliable edge quality at 0.2–0.35 m/min for 20mm SS.

Why the Max 6000X Ranks Best in Class

• Maximum Reach: Comes with a 20-meter fiber delivery cable, providing the necessary range for extra-large format industrial cutting tables.

• Extreme Beam Quality: Laser beam quality is rated at 3-3.8@100$\mu$m, ensuring deep penetration and clean kerfs in thick materials.

• Robust Environmental Tolerance: Operates efficiently in environments up to 40∘C and 85% humidity, built for the rigors of heavy factory use.

Frequently Asked Questions (FAQ) - Max MFSC 6000X Fiber Laser Source

• Which water chiller is compatible with the Max 6000X? Due to the 20 KW input power, a high-capacity industrial dual-temperature chiller is required. It must use pure water or glycol antifreeze to maintain the $10$ to 40∘C operating range.

• Does RedBeam help with the installation of the 6000X? Yes! RedBeam provides professional installation and high-power technical integration for an additional charge. Contact us for a formal quotation and power calibration.

• Are the QBH and Fiber Cable covered under warranty? No. The QBH G4.3/G5 interface and the 20-meter fiber delivery cable are considered consumable parts and are not covered under standard warranty terms.

• Is damage from water or electrical fluctuations covered? No. The warranty does not cover internal damage caused by water (condensation/leaks) or damage resulting from electrical fluctuations outside the $400\pm 40$ VAC range.

• How do I maintain the laser power electronics at 6kW? To protect the unit from high-voltage surges and ensure a stable 6000W output, the use of a standard industrial UPS is highly recommended.
