Solving High-Output Industrial Welding Challenges

Heavy fabrication requires massive heat input without compromising material strength. The Max 6000C addresses three critical pain points for large-scale manufacturers:

• Problem: Low throughput on 10mm+ structural steel seams.
• Solution: The 6000W output provides the energy density needed for deep-fusion welding in a single pass, replacing the need for multiple passes of traditional MIG/MAG welding and drastically increasing production speed.

• Problem: Massive thermal distortion in thick metal assemblies.
• Solution: High electro-optical efficiency (>30%) and precise beam focus ensure that energy is concentrated exactly at the joint, preventing the warping and material degradation common in heavy arc welding.

• Problem: High operational energy costs for high-power equipment.
• Solution: With a wall plug efficiency of more than 30%, this unit converts more electricity into usable laser power, significantly lowering the cost-per-weld compared to older CO2 or lower-efficiency laser technologies.

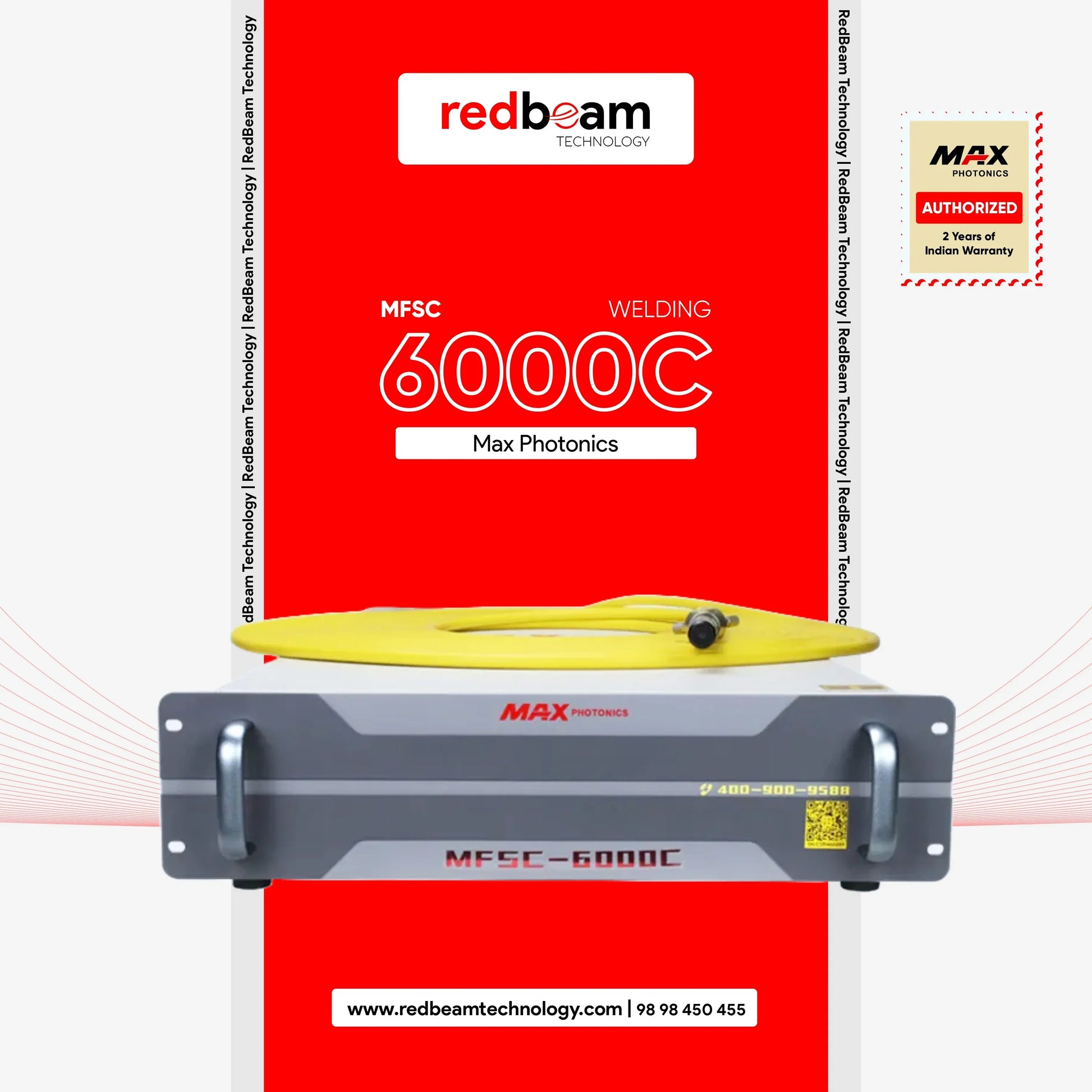

Technical Specifications: Max MFSC-6000C Fiber Laser Welding Source

Optimized Welding Capabilities

The 6000C is the professional standard for high-thickness fabrication where maximum bond strength is required:

• Stainless Steel (SS): Achieves deep-penetration, high-strength welds on thicknesses up to 12mm or more with a clean finish.

• Carbon Steel (CS): Provides superior structural fusion on plates up to 10mm–12mm, maintaining joint integrity for heavy-duty load-bearing components.

• High-Speed Precision: Even on thick materials, the 6000W power allows for high travel speeds, ensuring a narrow weld bead and minimal post-weld grinding.

Why the Max 6000C Laser Welding Source Ranks Best in Class

• Massive Power, Compact Footprint: Packs 6000W of power into a single-module chassis weighing only 56kg, making it suitable for mounting on large robotic arms or gantry systems.

• Maximum Workspace Reach: Comes standard with a 20-meter feeding fiber cable, providing the necessary range for extra-large fabrication beds without moving the laser source.

• Stable Energy Output: Maintained at $\pm 1\%$ to $\pm 2\%$ power instability, ensuring that every centimeter of a long structural weld is uniform and strong.

Frequently Asked Questions (FAQ) Max Fiber Laser Source 6000C - Laser Welding

• Which water chiller is compatible with the Max 6000C? A high-capacity dual-temperature chiller with at least 14kW cooling capacity is required to maintain the 10–40∘C operating range for industrial diode stability.

• Does RedBeam help with the installation? Yes! RedBeam provides professional installation, technical calibration, and high-power integration of the 6000C into your automated or robotic welding cell for an additional charge.

• Are the QBH and Fiber Cable covered under warranty? No. The QBH fiber connectors and the feeding fiber cable are considered consumable parts and are explicitly excluded from the standard warranty scope.

• Is damage from environmental factors covered? No. The warranty does not cover damage caused by misuse, neglect, or operating under conditions outside the specified $10\text{–}85\%$ humidity range.

• How do I protect the system from electrical failure? Because the 6000C requires a stable $360\text{–}440$ VAC input, the use of a standard industrial UPS or voltage stabilizer is highly recommended to prevent surge-related damage
