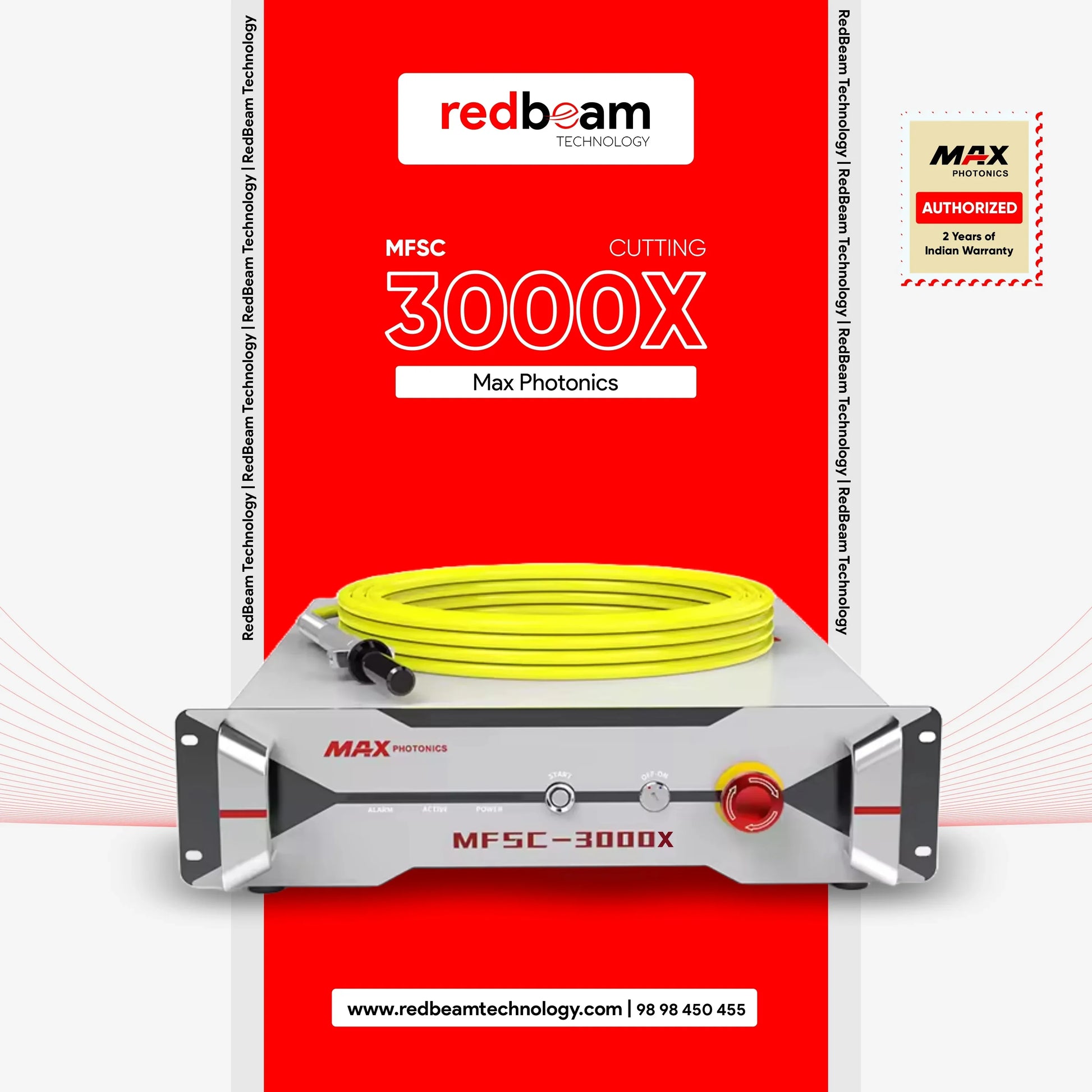

Max MFSC-3000X: High-Power 3000W Fiber Laser Source (X-Series)

The Max MFSC-3000X is a high-performance, single-module continuous wave (CW) fiber laser that defines the standard for 3kW industrial cutting. Engineered for high-speed processing of thick plates, this X-Series model delivers 3000W of stable, high-density power in an ultra-compact $115$ mm height frame. It is the ideal solution for workshops looking to significantly increase throughput while maintaining a small machine footprint.

Solving High-Capacity Industrial Cutting Challenges

In a competitive manufacturing environment, speed and reliability are paramount. The Max 3000X solves three critical pain points for operators:

• Problem: Slow cycle times on thick metal sheets.
• Solution: With 3000W of nominal power and high energy density, this Fiber Laser achieves rapid feed rates on heavy-gauge materials.

• Problem: Power inconsistency during long shifts.
• Solution: Power instability is rated at only $\pm 1\text{–}2\%$ over an hour, ensuring every cut remains uniform from the first piece to the last.

• Problem: Integration into small machine cabinets.
• Solution: At only $35.5$ kg and $115$ mm in height, it offers a high power-to-size ratio, making it the perfect upgrade for space-constrained setups.

Technical Specifications: Max MFSC-3000X

Optimized Cutting Performance

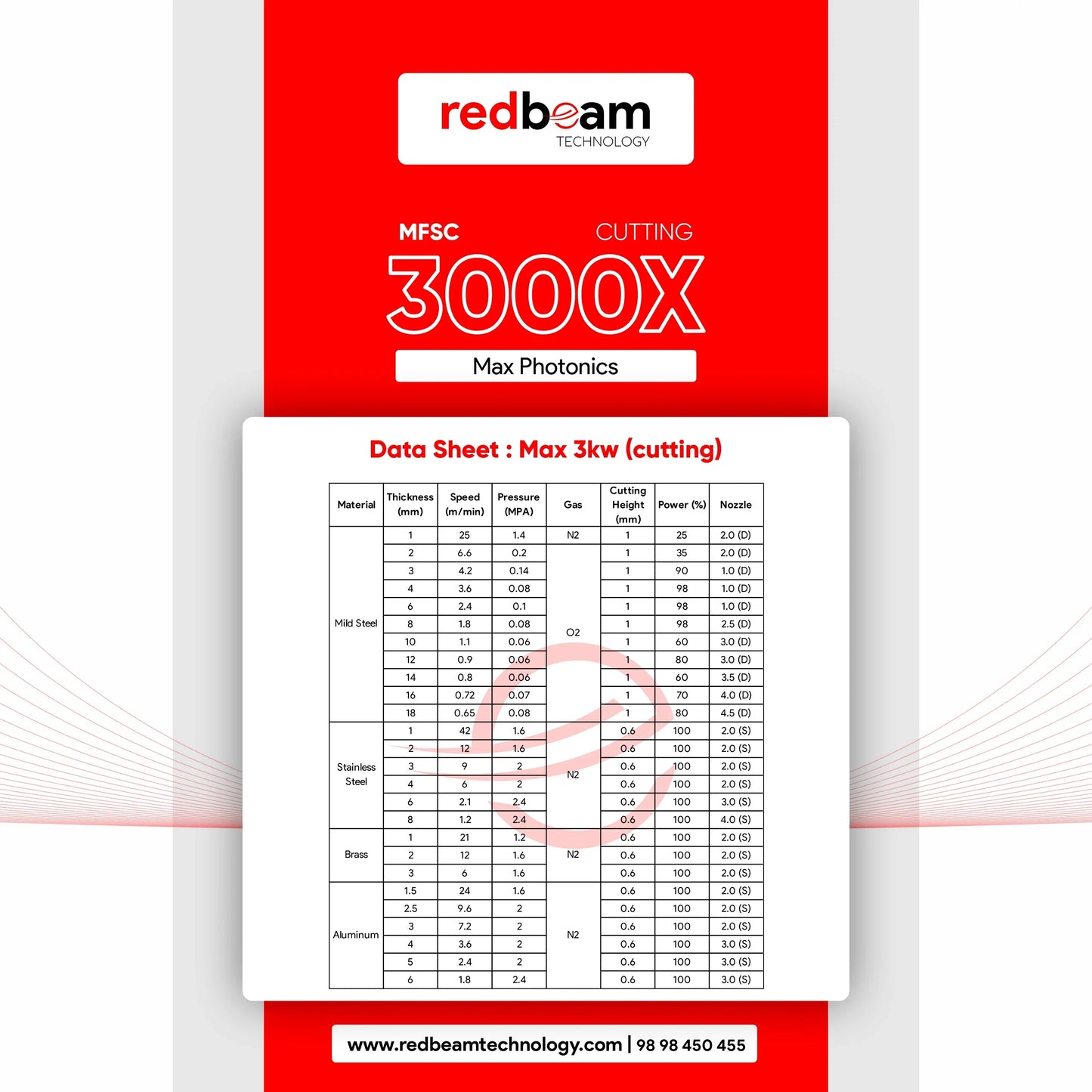

Based on the official X-Series cutting parameters, the 3000X delivers exceptional results across a wide range of thicknesses:

Mild Steel (MS): Capable of cutting up to 18mm thickness.

• High-Speed Thin Cutting: 25 m/min for 1mm MS using N2 gas.

• Heavy Gauge Performance: Stable cutting at 0.65 m/min for 18mm MS using O2 gas.

Stainless Steel (SS): Capable of high-quality cuts up to 8mm thickness.

• Efficiency: Rapid processing at 42 m/min for 1mm SS.

• Precision: Clean edges on 8mm SS at 1.2 m/min using N2 gas.

Why the Max 3000X Ranks Best in Class

• Extended Reach: Comes standard with a 20-meter fiber delivery cable, ideal for large-format cutting tables.

• Precision Control: A modulation frequency of $\le 20$ kHz allows for intricate detailing and sharp corners.

• Ruggedized Design: Operates efficiently in environments up to 40∘C and $85\%$ humidity.

Frequently Asked Questions on Max Fiber Laser Source 3000X - Laser Cutting

• Which water chiller is compatible with the Max 3000X? A high-capacity dual-temperature chiller is required. The unit uses pure water (above 0∘C) or glycol antifreeze (below 0∘C) as the cooling medium.

• Does RedBeam help with installation? Yes! RedBeam provides professional installation and technical integration for an additional charge. Ask for a formal quotation.

• Are the QBH and Fiber Cable covered under warranty? No. The QBH G4.3 interface and the fiber delivery cable are considered consumable parts and are not covered under the standard warranty terms.

• Is damage from water or electrical fluctuations covered? No. The warranty does not cover internal damage caused by water (condensation/leaks) or damage resulting from electrical fluctuations outside the $400\pm 40$ VAC range.

• How do I maintain the power electronics? To protect the unit from power surges and ensure a stable 3kW output, the use of a standard industrial UPS is highly recommended.
