Solving High-Output Industrial Welding Challenges

Heavy fabrication requires massive heat input without compromising material strength. The Max 3000C addresses three critical pain points for manufacturers:

• Problem: Low throughput on 6mm–8mm structural steel seams.
• Solution: The 3000W output provides a high power-to-spot ratio, enabling deep-fusion welding at travel speeds that far exceed traditional manual or robotic arc methods.

• Problem: Inconsistent weld quality in large-scale production.
• Solution: With a power instability rating of just $\pm 1\%$ to $\pm 2\%$, the 3000C maintains a stable melt pool, ensuring uniform penetration and preventing porosity in critical joints.

• Problem: High operational energy costs for high-power equipment.
• Solution: Featuring a wall plug efficiency of more than $30\%$, this unit converts more electricity into usable laser power, drastically lowering the cost-per-weld compared to older laser technologies.

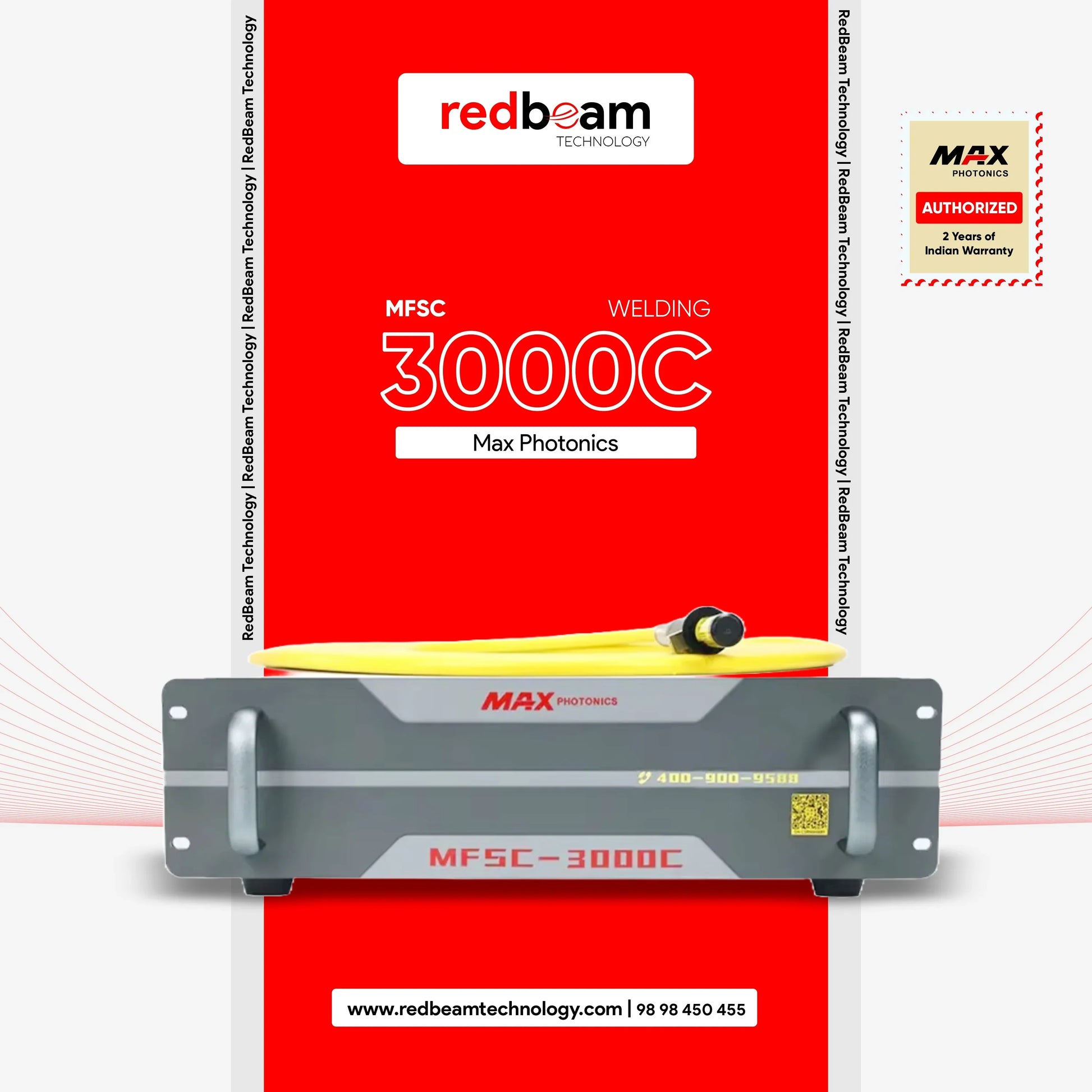

Technical Specifications: Max MFSC-3000C Welding Source

Optimized Welding Capabilities

The 3000C is the professional standard for heavy-gauge fabrication where maximum bond strength is required:

• Stainless Steel (SS): Achieves full-penetration, high-strength welds on thicknesses up to 8mm with an aesthetically superior finish.

• Carbon Steel (CS): Provides deep structural fusion on plates up to 8mm, replacing multiple passes of traditional welding with a single high-speed laser pass.

• Dissimilar Metal Joining: The high energy density and $1.8\text{ mm}\times \text{mrad}$ beam quality allow for the clean bonding of complex alloys with a minimal heat-affected zone (HAZ).

Why the Max 3000C Ranks Best in Class

• Single-Module Power Density: Packs 3000W into a compact chassis weighing just $35.5$ kg, making it easy to mount on overhead gantries or large robotic systems.

• Maximum Workspace Reach: Comes standard with a 20-meter feeding fiber cable, providing the necessary range for extra-large structural welding beds.

• Industrial Precision: A beam quality (BPP) of $\le 1.8\text{ mm}\times \text{mrad}$ (at $50\mu \text{m}$) ensures a tightly concentrated energy spot for deep, narrow weld beads

Frequently Asked Questions (FAQ) for Max Fiber Laser Source 3000C - Laser Welding

• Which water chiller is compatible with the Max 3000C? A high-capacity dual-temperature chiller with at least $7.5\text{ kW}$ cooling capacity is required to maintain the 10–40∘C operating range.

• Does RedBeam help with the installation of the 3000C? Yes! RedBeam provides professional installation, technical calibration, and high-power integration into your automated or robotic welding cell for an additional charge.

• Are the QBH and Fiber Cable covered under warranty? No. The QBH fiber connectors and the feeding fiber cable are considered consumable parts and are explicitly excluded from the standard warranty scope.

• Is damage from environmental factors covered? No. The warranty does not cover damage caused by misuse, neglect, or operating under conditions outside the specified $10\text{–}85\%$ humidity range.

• How do I protect the system from electrical failure? Because the 3000C requires a stable $360\text{–}440\text{ VAC}$ input, the use of a standard industrial UPS or voltage stabilizer is highly recommended to prevent surge-related damage.
