Redbeam Technology

Max Fiber Laser Source 2000X - Laser Cutting

Max Fiber Laser Source 2000X - Laser Cutting

Regular price Rs. 299,999.00
Regular price Rs. 349,999.00 Sale price Rs. 299,999.00
Sale Sold out
Taxes & Shipping calculated at checkout.
Quantity

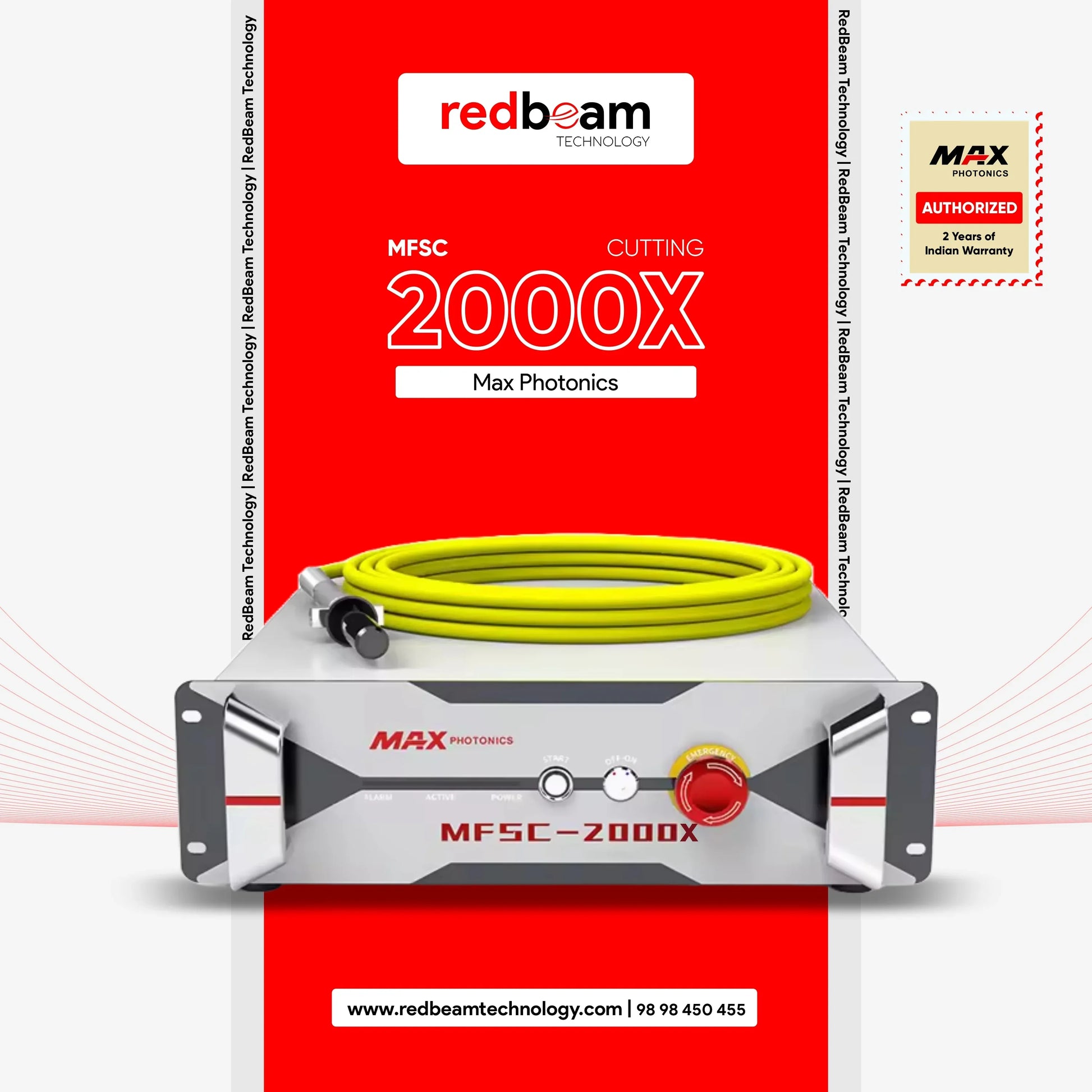

Max MFSC-2000X: High-Performance 2000W Fiber Laser Source (X-Series)



The Max MFSC-2000X is a premier, single-module continuous wave (CW) fiber laser that perfectly balances power and precision. Engineered for high-speed industrial cutting, this 2000W X-Series model delivers stable, high-density power in a compact, kg frame. It is designed to provide superior edge quality on mid-range thicknesses while maintaining exceptional energy efficiency.



Solving Key Industrial Cutting Challenges



In a modern production environment, consistency and cost-control are essential. The Max 2000X solves three primary pain points:



  • Problem: Slow throughput on 10mm–15mm steel sheets.

  • Solution: With a nominal power of 2000W, this Fiber Laser provides the necessary energy density to maintain efficient feed rates on thicker structural materials.



  • Problem: High electricity and operational overhead.

  • Solution: Designed for high electro-optical efficiency, this unit minimizes power consumption, lowering the overall cost-per-part produced.



  • Problem: Frequent downtime in harsh environments.
  • Solution: The fully sealed, water-cooled design operates reliably in environments with up to humidity, ensuring long-term stability without constant maintenance.



Technical Specifications: Max MFSC-2000X



Parameter Technical Detail
Nominal Power 2000W
Operating Mode CW / Modulated
Wavelength $1080 \pm 10$ nm
Power Instability $\pm 1.5\%$
Supply Voltage $200 \pm 20$ VAC Single Phase
Output Connector QBH G4.2
Fiber Cable Length 15 Meters
Dimensions (WDH)

$486 \times 410 \times 115$ mm





Why the Max 2000X Ranks Best in Class



  • Ultra-Compact Design: Weighing just kg, it is easily integrated into standard machine cabinets without sacrificing performance.

  • Highly Tunable: Power tunability from to allows for extreme versatility between thin engraving and thick cutting tasks.

  • Excellent Beam Quality: A beam quality of BPP (@50$\mu$m fiber core) ensures a concentrated energy spot for cleaner cuts and smaller heat-affected zones.



Frequently Asked Questions (FAQ) on Max MFSC 2000X Fiber Laser Source



  • Which water chiller is compatible with the Max 2000X? A dual-temperature water chiller is required. Use pure water (above C) or glycol antifreeze (below C) to maintain the to C operating temperature range.



  • Does RedBeam help with installation? Yes! RedBeam provides professional installation and technical integration for an additional charge. Contact us for a formal quotation.



  • Are the QBH and Fiber Cable covered under warranty? No. The QBH G4.2 interface and the 15-meter fiber delivery cable are considered consumable parts and are not covered under standard warranty terms.



  • Is damage from electrical fluctuations covered? No. The warranty does not cover damage resulting from fluctuations outside the VAC range.



  • How do I maintain the laser power electronics? To protect the system from power surges and ensure stable 2000W output, the use of a standard industrial UPS is highly recommended.
