Solving Key Industrial Cutting Challenges

In modern manufacturing, efficiency is the difference between profit and loss. The Max 1500X solves three primary pain points for operators:

• Problem: Slow cutting speeds on medium-thickness steel.
• Solution: The high power density of this Fiber Laser allows for significantly faster feed rates compared to lower-wattage or multi-module sources.

• Problem: High electricity and operational overhead.
• Solution: With an electro-optical conversion efficiency exceeding 30%, this unit minimizes power consumption, lowering the cost-per-part produced.

• Problem: Frequent downtime due to internal contamination.
• Solution: The fully sealed, modular design protects the internal fiber optics from dust and industrial debris, ensuring long-term reliability without constant maintenance.

Technical Specifications: Max MFSC 1500X

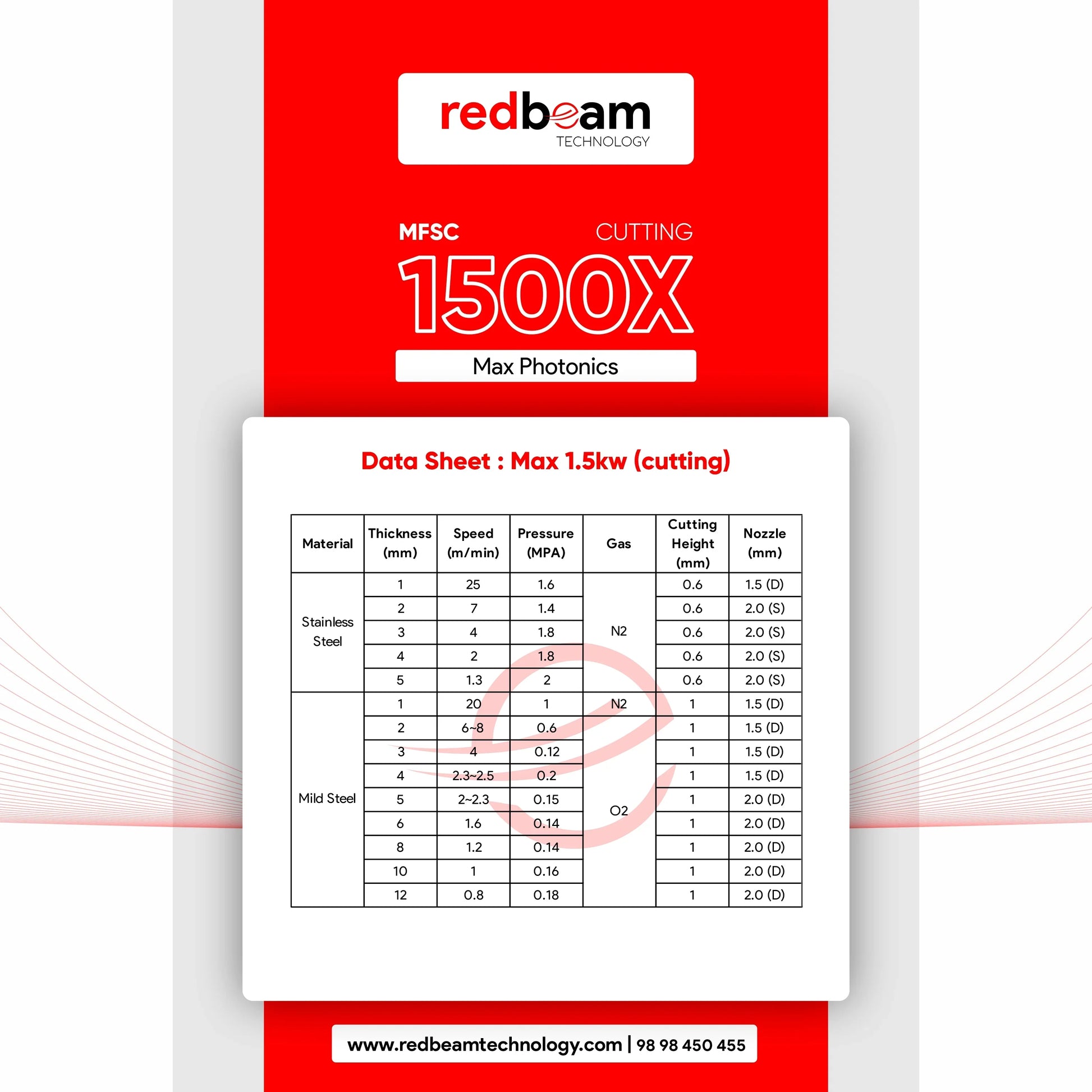

Optimized Cutting Capabilities

This Fiber Laser source is fine-tuned for high-quality results on the most common industrial metals:

1. Mild Steel: Delivers clean, vertical cuts up to 10mm–12mm with minimal dross.
2. Stainless Steel: Achieves a "mirror finish" edge on thicknesses up to 4mm–5mm.
3. Precision Parts: The excellent beam quality (M2≤1.3) allows for intricate geometries and tight tolerances.

Why the Max 1500X MFSC C-SERIES Ranks Best in Class

• Compact Footprint: The single-module architecture allows for easy integration into compact machine cabinets without sacrificing power.
• Consistent Output: Even during long production shifts, the power stability remains under 2%, ensuring that the first part of the day looks identical to the last.
• Plug-and-Play Integration: Uses industry-standard interfaces, making it the perfect upgrade for any modern fiber laser cutting system.

Frequently Asked Questions On Max Fiber Laser Source 1500X - Laser Cutting

• Which water chiller is compatible with the Max 1500X? For optimal performance and longevity, a dual-temperature water chiller with a cooling capacity of at least 1.5 TR is required (e.g., S&A CWFL-1500 or Hanli HL-1500). Keeping the laser source at a stable temperature is critical for power consistency.

• Which cutting head should be used with the 1500X source? The Max 1500X is compatible with most industry-standard fiber laser cutting heads. Popular choices include the Raytools BM110 OR BM111 (Auto-focus) or the WSX series, or BOCHU BLT 310 provided they are rated for 1.5kW to 3kW power levels.

• Can I upgrade my 1500X source to a 3000X model later? Yes, an upgrade is possible, but it requires more than just swapping the source. You will need to upgrade to a higher-capacity water chiller, a cutting head rated for 3kW, and potentially adjust your machine’s power supply and wiring to handle the increased load.

• Does RedBeam help with the installation of the 1500X? Yes! RedBeam provides professional installation and integration of the 1500X onto your existing machine. This service is available for an additional charge. Please contact us directly to request a formal quotation for on-site or remote installation support.

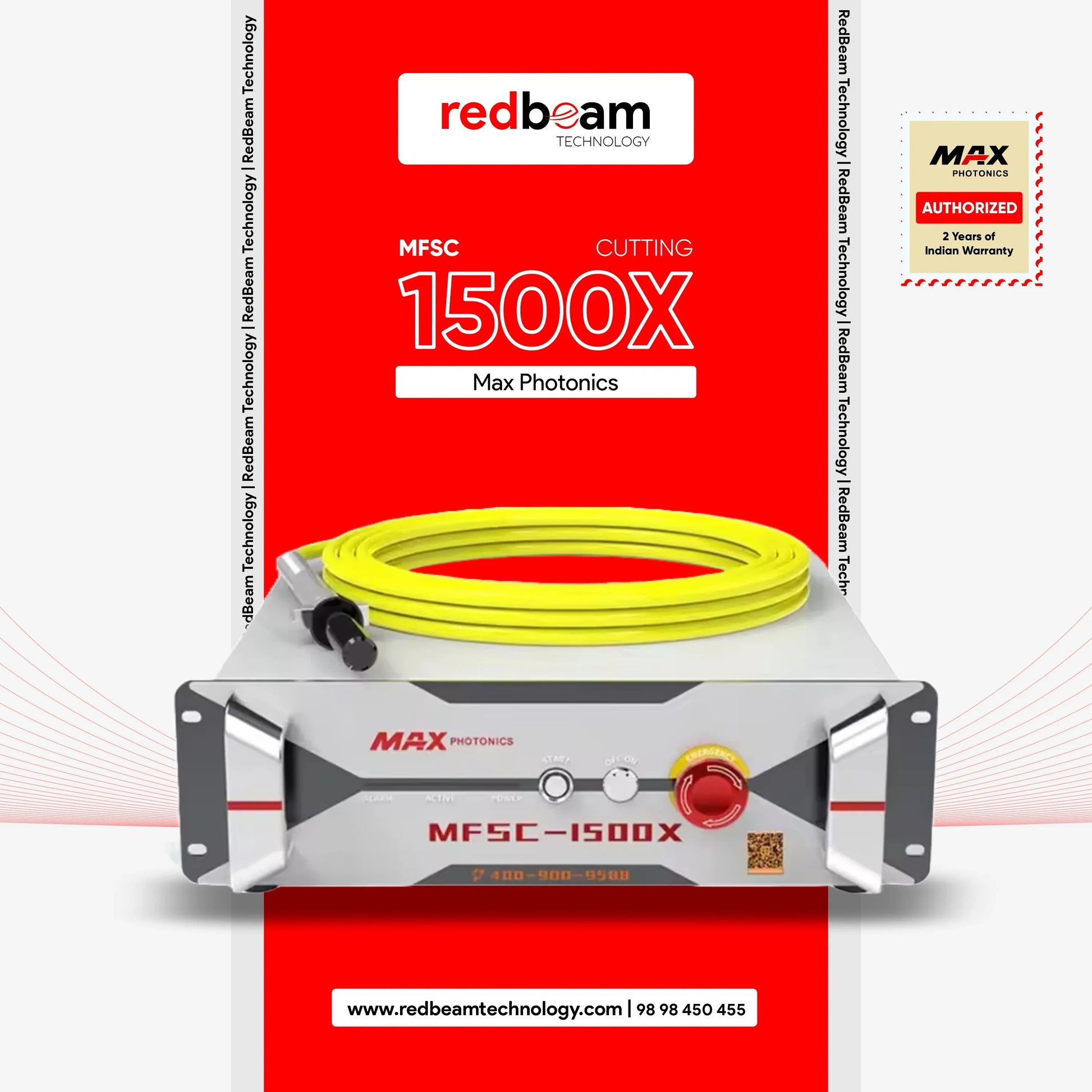

• What is the fiber cable length of the MFSC 1500X? This specific model comes with a 15-meter fiber cable, providing ample flexibility for machine integration and large-format cutting tables.

• Are the QBH and Fiber Cable covered under warranty? No. The QBH connector is considered a consumable part. Similarly, the fiber crystal and the fiber cable itself are not covered under the standard warranty terms.

• Is damage from water or electrical fluctuations covered? No. The warranty does not cover internal damage caused by water (condensation or leaks) or damage resulting from electrical fluctuations and power surges.

• How do I maintain consistent power and protect the laser electronics? To maintain stable power output and protect the sensitive internal components from electrical damage, the use of a standard industrial UPS (Uninterruptible Power Supply) is highly recommended.

• What are the benefits of a Single-Module Fiber Laser like the 1500X? A single-module fiber laser provides a more concentrated and stable beam compared to multi-module systems. This results in a smaller heat-affected zone (HAZ) and faster cutting speeds on thin to medium-thickness metals.

• How does the Max 1500X improve production efficiency? By utilizing high electro-optical efficiency, the Max 1500X converts more electricity into usable laser power. This reduces heat waste and lowers the cooling requirements, saving on both energy bills and chiller wear-and-tear.
