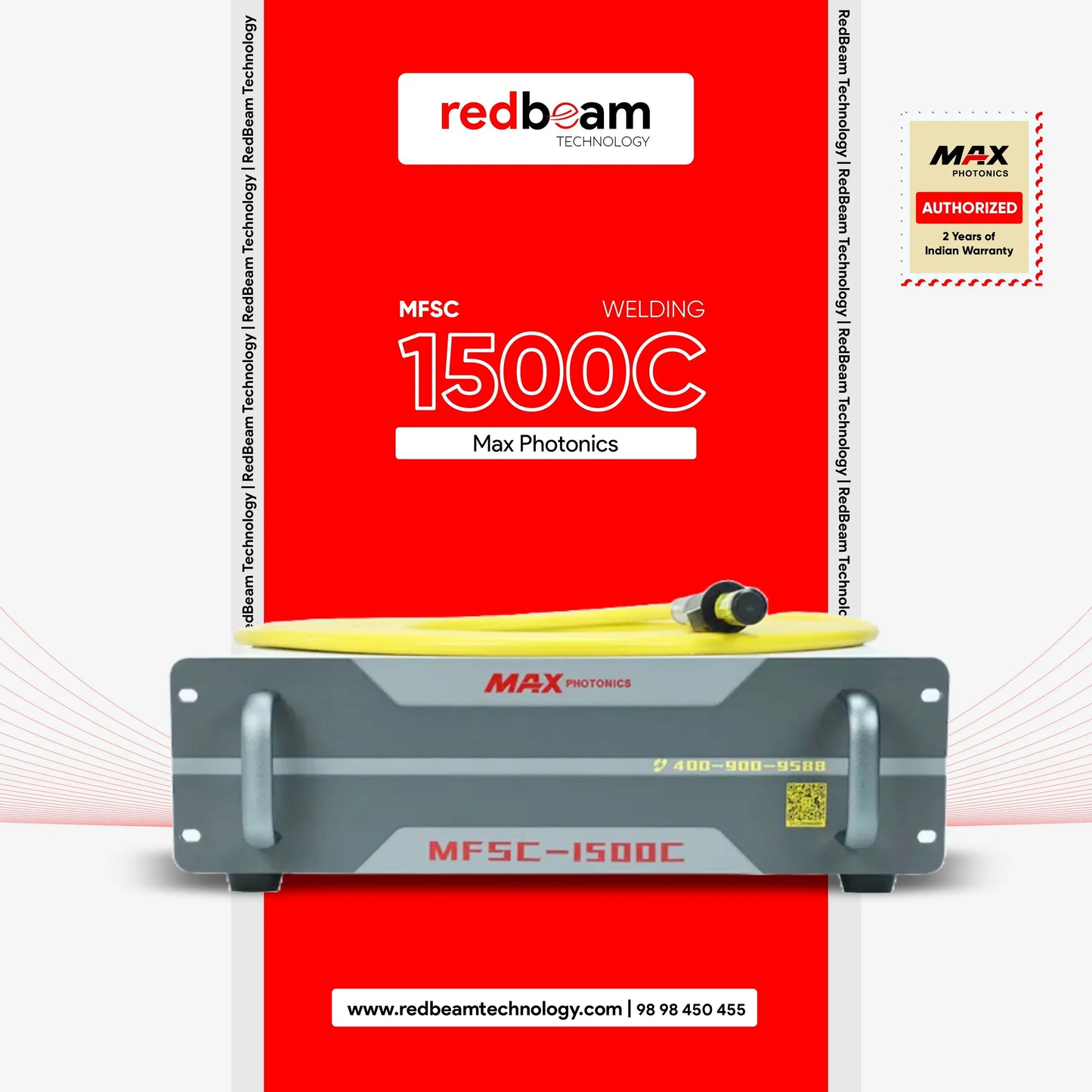

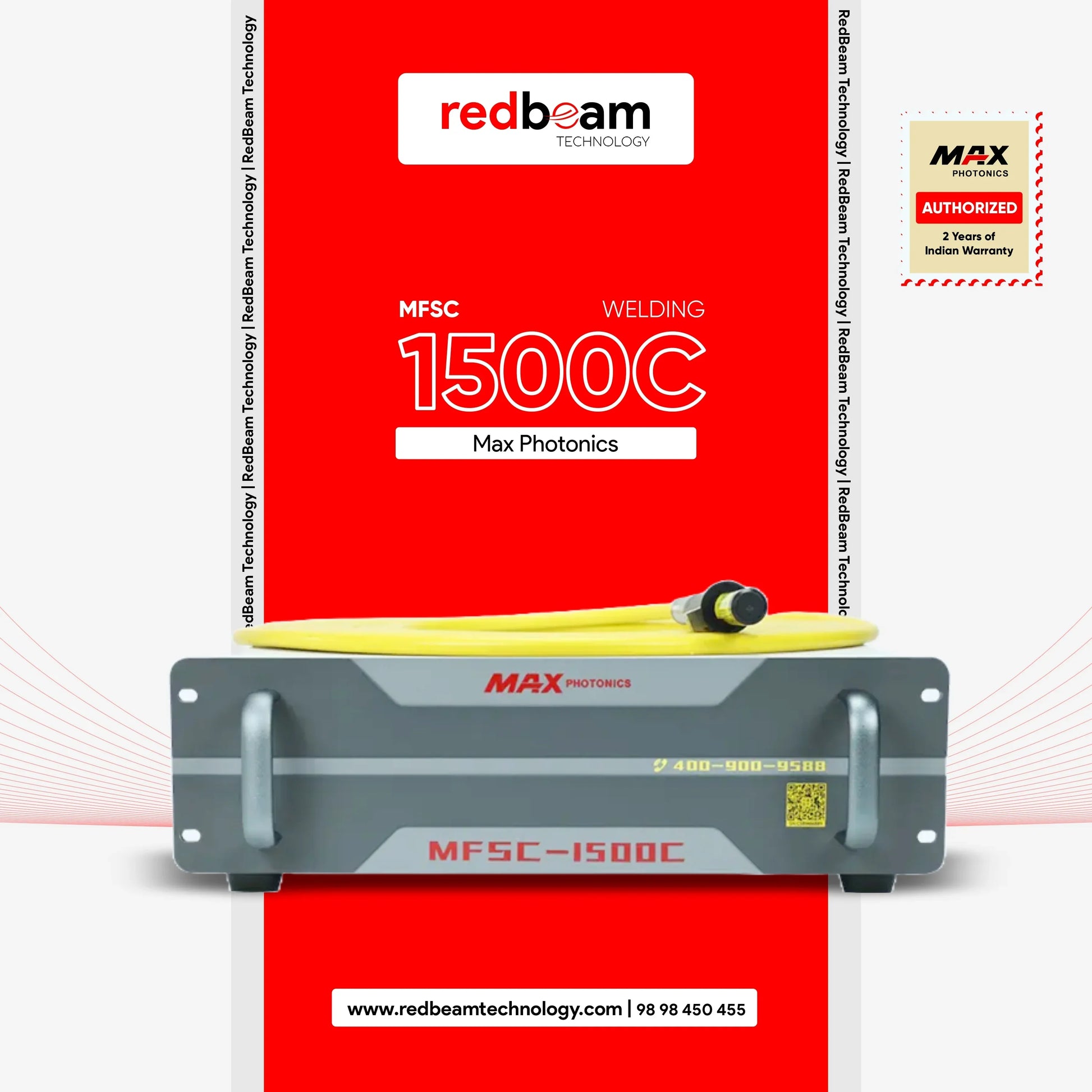

Max MFSC-1500C: High-Efficiency 1500W Fiber Laser Source (Welding Series)

The Max MFSC-1500C is a specialized, single-module continuous wave (CW) fiber laser engineered specifically for precision industrial welding. Designed to be the core of handheld or automated welding systems, this model provides 1500W of stable power to create deep, consistent welds with minimal thermal impact. It is the premier solution for manufacturers moving away from traditional TIG/MIG welding toward faster, cleaner fiber technology.

Solving Key Industrial Welding Challenges

Traditional welding methods are often slow and require extensive post-processing. The Max 1500C solves three primary pain points for fabricators:

• Problem: Excessive post-weld grinding and polishing.

• Solution: The high-density beam of this Fiber Laser creates a narrow, aesthetically clean weld bead, significantly reducing finishing time.

• Problem: Thermal distortion and warping in thin sheets.

• Solution: Precise power control and a narrow heat-affected zone (HAZ) ensure that thin stainless steel or galvanized sheets remain flat and structurally sound.

• Problem: High skill requirements for traditional welding.

• Solution: When integrated into a handheld system, the 1500C is easier to master than TIG welding, allowing operators to achieve professional results with less training.

Technical Specifications: Max MFSC-1500C - Laser Welding

Optimized Welding Capabilities

The 1500C is fine-tuned for high-strength bonding across the most common industrial metals:

• Stainless Steel (SS): Achieves high-fusion welds on thicknesses up to 3.5mm–4mm with a smooth, bright finish.

• Carbon Steel (CS): Delivers structurally sound, deep-penetration joints on plates up to 3.5mm–4mm.

• Thin Sheet Precision: Excellent for welding 1mm–2mm sheets where avoiding burn-through and warping is critical.

Why the Max 1500C Ranks Best in Class

• Ultra-Portable Design: At only 20kg, its lightweight, single-module architecture makes it easy to integrate into portable welding cabinets or robotic arms.

• Stable Energy Output: With a power instability of just $\pm 1.5\%$, it ensures consistent weld strength throughout long production cycles.

• Industrial Ruggedness: Built to operate in environments up to 40∘C and 85% humidity, protecting internal optics from factory conditions.

Frequently Asked Questions (FAQ) Max Fiber Laser Source 1500C - Laser Welding

• Which water chiller is compatible with the Max 1500C? A dual-temperature water chiller with a cooling capacity of at least 3.5kW is required to maintain the laser between 10∘C and 40∘C.

• Which welding head should be used? It is compatible with most standard handheld wobble welding heads or automated laser welding heads with a QBH G4.2 interface.

• Does RedBeam help with the installation? Yes! RedBeam provides professional installation and technical integration of the 1500C into your welding setup for an additional charge.

• Are the QBH and Fiber Cable covered under warranty? No. The QBH G4.2 connector and fiber cable are considered consumable parts in a welding environment and are not covered under the standard warranty.

• How do I protect the laser electronics? To prevent damage from power surges and ensure a consistent weld arc, the use of a standard industrial UPS is highly recommended.
